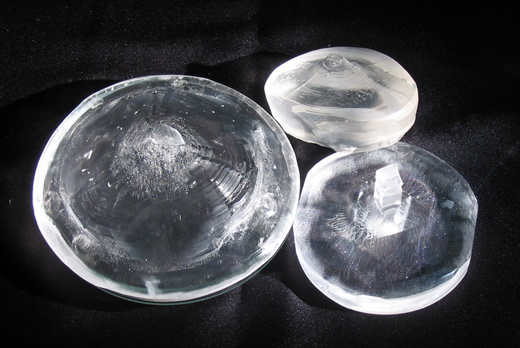

BBO crystal is a non-linear optical crystal that combines a number of unique features.
These features of nonlinear BBO crystal includes wide transparency and phase matching ranges, large non-linear coefficient, high damage threshold and excellent optical homogeneity. Therefore, BBO provides an attractive solution for various non-linear optical applications like OPO, OPA, OPCPA and other. As a result of large thermal acceptance bandwidth, high damage threshold and small absorption BBO well suits for frequency conversion of high peak or average power laser radiation. The large spectral transmission range as well as phase matching, especially in UV range, makes BBO perfectly suitable for frequency doubling of Dye, Arion and Copper vapour laser radiation, effective cascade harmonic generation (Frequency doublers, triplers, parametric amplifiers and wave mixers) of wide spread Nd:YAG as well as of Ti:Sapphire and Alexandrite laser radiation. Both angle tuned Type 1 (oo-e) and Type 2 (eo-e) of phase matching can be obtained increasing a number of advantages for different applications.
BBO Crystal be provided by ULTI Crystal have below features:
• Broad phase matchable range from 409.6 nm to 3500 nm
• Wide transmission region from 190 nm to 3500 nm
• Large effective second-harmonic-generation (SHG) coefficient about 6 times greater than that of KDP
crystal
• High damage threshold
• High optical homogeneity with dn » 10-6/cm
• Wide temperature-bandwidth of about 55°C
Code |
Size,mm |
θ |
φ |
Coating S1/S2 |
Application |
Price
|
BBO-101 |
10x10x0.1 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-102 |
10x10x0.5 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-103 |
10x10x1 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-104 |
6x6x0.1 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-105 |
6x6x0.1 |
44.3 |
90 |
400-800/266 |
THG@800nm |
Contact us |
BBO-106 |
6x6x0.2 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-107 |
6x6x0.2 |
44.3 |
90 |
400-800/266 |
THG@800nm |
Contact us |
BBO-108 |
6x6x0.5 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-109 |
6x6x0.5 |
44.3 |
90 |
400-800/266 |
THG@800nm |
Contact us |
BBO-110 |
6x6x1 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-111 |
6x6x1 |
44.3 |
90 |
400-800/266 |
THG@800nm |
Contact us |
BBO-112 |
6x6x2 |
29.2 |
90 |
400-800/400-800 |
SHG@800nm |
Contact us |
BBO-113 |
7x7x6 |
47.6 |
90 |
532/266 |
SHG@532nm |
Contact us |
 |
Notes |
| |
»| BBO has a low susceptibility to the moisture. The user is advised to provide dry conditions for both the use and preservation of BBO. |
| |
»| BBO is relatively soft and therefore requires precautions to protect its polished surfaces. |
| |
»| When angle adjusting is necessary, keep in mind that the acceptance angle of BBO is small. |
| |
»| ULTI Crystal can provide holder,please contact us for more information. |
| |
»| Custom size is available upon requested. |
|
|
|
